Stellar Population Aging: SSP at Solar Metallicity

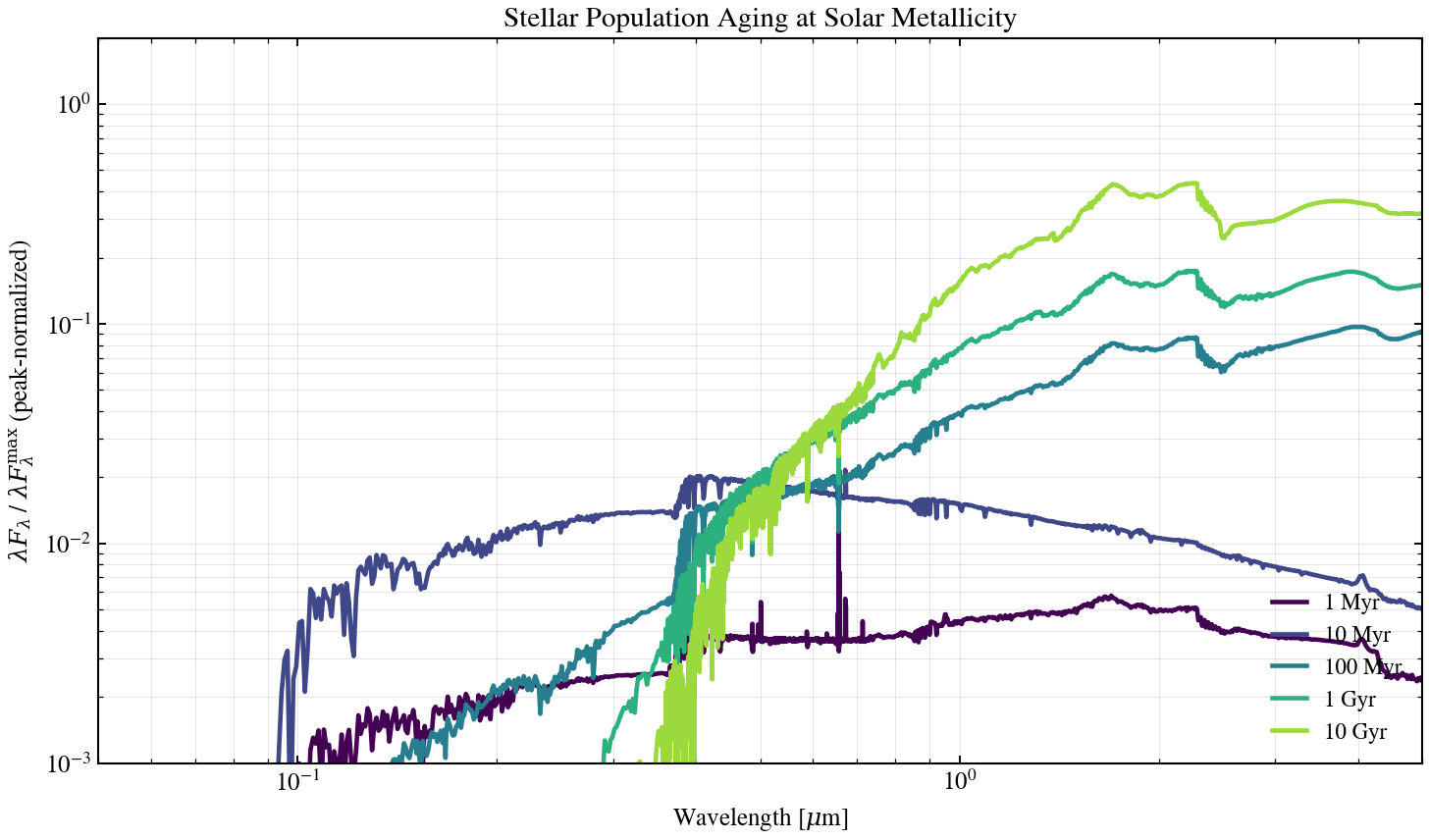

Five representative ages from the DSPS SSP grid at solar metallicity. A single stellar population transitions from UV-dominated (young, hot) to NIR-dominated (old, red); rest-frame λF_λ on log-log axes makes the temperature inversion visible.

from pathlib import Path

import matplotlib.pyplot as plt
import numpy as np

from tengri import load_ssp_data
from tengri.analysis.plotting import setup_style

setup_style()


def _find_ssp():
    """Find SSP data file in standard locations."""
    name = "ssp_prsc_miles_chabrier_wNE_logGasU-3.0_logGasZ0.0.h5"
    for p in [
        Path("data") / name,
        Path("../data") / name,
        Path("../../data") / name,
        Path("../../../data") / name,
    ]:
        if p.exists():
            return str(p)
    return None


ssp_path = _find_ssp()
if ssp_path is None:
    raise FileNotFoundError("SSP data not found — skipping example")

ssp_data = load_ssp_data(ssp_path)

# Extract grid
age_gyr = 10 ** np.array(ssp_data.ssp_lg_age_gyr)
log_z = np.array(ssp_data.ssp_lgmet)
ssp_wave = np.array(ssp_data.ssp_wave)
ssp_spec = np.array(ssp_data.ssp_flux)  # Shape: (n_z, n_age, n_wave)

# Select solar metallicity
z_idx_solar = np.argmin(np.abs(log_z - 0.0))

# Select 5 ages: 1 Myr, 10 Myr, 100 Myr, 1 Gyr, 10 Gyr
target_ages = [1e-3, 0.01, 0.1, 1.0, 10.0]  # Gyr
age_indices = [np.argmin(np.abs(age_gyr - t)) for t in target_ages]
age_labels = ["1 Myr", "10 Myr", "100 Myr", "1 Gyr", "10 Gyr"]

# Clamp viridis colormap to 0.0–0.85
colors = plt.cm.viridis(np.linspace(0.0, 0.85, len(target_ages)))

fig, ax = plt.subplots(figsize=(10, 6))

# Plot each age — peak-normalize so the *shape* (UV→IR aging) dominates the eye
# rather than the absolute flux scale, which spans 30+ decades across ages.
for age_idx, age_lbl, color in zip(age_indices, age_labels, colors):
    spec = np.asarray(ssp_spec[z_idx_solar, age_idx, :])
    lambda_f_lambda = ssp_wave * spec
    # Mask zero/negative entries (log of 0 → -inf artifacts) before normalising
    safe = np.where(lambda_f_lambda > 0, lambda_f_lambda, np.nan)
    norm = np.nanmax(safe)
    ax.loglog(ssp_wave / 1e4, safe / norm, lw=2.2, color=color, label=age_lbl)

ax.set_xlabel(r"Wavelength [$\mu$m]", fontsize=12)
ax.set_ylabel(
    r"$\lambda F_\lambda$ / $\lambda F_\lambda^{\rm max}$ (peak-normalized)",
    fontsize=12,
)
ax.set_title("Stellar Population Aging at Solar Metallicity", fontsize=14)
ax.legend(fontsize=11, frameon=False, loc="lower right")
ax.grid(True, alpha=0.3, which="both")
# Focus on the UV-NIR where stellar SEDs live; clip the empty far-IR / X-ray
# tails the SSP grid extends into.
ax.set_xlim(0.05, 5.0)
ax.set_ylim(1e-3, 2.0)

fig.tight_layout()
plt.savefig("plot_ssp_age_sweep.png", dpi=150, bbox_inches="tight")
plt.show()
