Key Spectral Features as Age and Metallicity Probes

D4000, Hδ absorption, and the Mg b feature respond differently to stellar age and metallicity, providing complementary constraints when used together. D4000 rises with age; Hδ peaks at intermediate ages (A-star dominated); Mg b traces metallicity on the RGB/AGB branch.

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

from tengri import load_ssp_data, setup_style

setup_style()


def _find_ssp():
    name = "ssp_prsc_miles_chabrier_wNE_logGasU-3.0_logGasZ0.0.h5"
    for p in [
        Path("data") / name,
        Path("../data") / name,
        Path("../../data") / name,
        Path("../../../data") / name,
    ]:
        if p.exists():
            return str(p)
    return None


SSP_PATH = _find_ssp()
if SSP_PATH is None:
    raise FileNotFoundError("SSP data not found — skipping example")

ssp = load_ssp_data(SSP_PATH)


# --- Index measurement helpers ---
def _d4000(wave, flux):
    """D4000 break: flux ratio 4050–4250 Å / 3750–3950 Å."""
    b = (wave >= 3750) & (wave <= 3950)
    r = (wave >= 4050) & (wave <= 4250)
    fb = float(jnp.mean(flux[b])) if jnp.any(b) else 1e-30
    fr = float(jnp.mean(flux[r])) if jnp.any(r) else 0.0
    return fr / max(fb, 1e-30)


def _hdelta_ew(wave, flux):
    """Hδ EW: simple continuum-normalized absorption at 4102 Å."""
    cont_lo = (wave >= 4030) & (wave <= 4082)
    cont_hi = (wave >= 4122) & (wave <= 4170)
    line = (wave >= 4082) & (wave <= 4122)
    c = float(jnp.mean(flux[cont_lo | cont_hi])) if jnp.any(cont_lo | cont_hi) else 1e-30
    dw = float(wave[line][1] - wave[line][0]) if jnp.any(line) else 1.0
    return float(jnp.sum((1 - flux[line] / c) * dw)) if jnp.any(line) else 0.0


def _mgb_index(wave, flux):
    """Mg b feature strength: 5167–5197 Å absorption."""
    cont = (wave >= 5142) & (wave <= 5162) | (wave >= 5197) & (wave <= 5217)
    feat = (wave >= 5162) & (wave <= 5197)
    c = float(jnp.mean(flux[cont])) if jnp.any(cont) else 1e-30
    dw = float(wave[feat][1] - wave[feat][0]) if jnp.any(feat) else 1.0
    return float(jnp.sum((1 - flux[feat] / c) * dw)) if jnp.any(feat) else 0.0


# --- Age grid from SSP ---
ages_gyr = np.array(ssp.ssp_lg_age_gyr)  # log10(age/Gyr)
# Use two metallicities: sub-solar and solar
met_idxs = {r"$[Z/H] = -0.4$": 2, r"$[Z/H] = 0.0$": 3}
wave = jnp.array(ssp.ssp_wave)

fig, axes = plt.subplots(1, 3, figsize=(12, 4))
colors = ["#1f77b4", "#d62728"]

for (label, mid), color in zip(met_idxs.items(), colors):
    d4_vals, hd_vals, mgb_vals = [], [], []
    for ai in range(ssp.ssp_flux.shape[1]):
        flux = ssp.ssp_flux[mid, ai]
        d4_vals.append(_d4000(wave, flux))
        hd_vals.append(_hdelta_ew(wave, flux))
        mgb_vals.append(_mgb_index(wave, flux))
    axes[0].plot(ages_gyr, d4_vals, color=color, lw=1.8, label=label)
    axes[1].plot(ages_gyr, hd_vals, color=color, lw=1.8, label=label)
    axes[2].plot(ages_gyr, mgb_vals, color=color, lw=1.8, label=label)

for ax, title, ylabel in [
    (axes[0], "D4000 Break", "D4000"),
    (axes[1], r"H$\delta$ EW", r"H$\delta$ EW [$\AA$]"),
    (axes[2], "Mg b Index", r"Mg b EW [$\AA$]"),
]:
    ax.set_xlabel(r"$\log_{10}$(Age / Gyr)")
    ax.set_ylabel(ylabel)
    ax.set_title(title)
    ax.legend(fontsize=10, frameon=False)

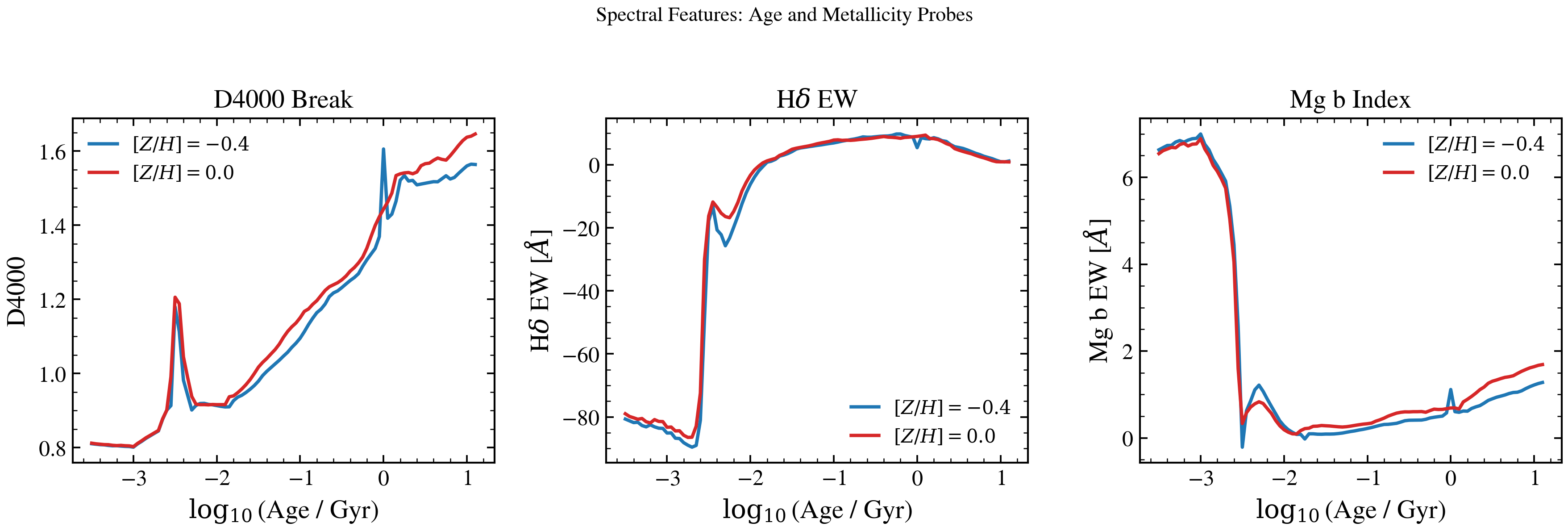

fig.suptitle("Spectral Features: Age and Metallicity Probes", fontsize=11, y=1.02)
fig.tight_layout()
plt.savefig("plot_spectral_features.png", dpi=150, bbox_inches="tight")
plt.show()
