First Photometric Fit

The simplest possible tengri workflow: define a parametric SFH model, generate mock SDSS photometry, fit it with MAP optimization, and plot the resulting SED fit.

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

from tengri import (
    Fitter,
    Fixed,
    Observation,
    Parameters,
    Photometry,
    SEDModel,
    Uniform,
    load_ssp_data,
)
from tengri.analysis.plotting import setup_style

setup_style()


# --- Load SSP data ---
def _find_ssp():
    """Locate SSP data from project root or docs/ (sphinx-gallery) cwd."""
    name = "ssp_prsc_miles_chabrier_wNE_logGasU-3.0_logGasZ0.0.h5"
    for p in [
        Path("data") / name,
        Path("../data") / name,
        Path("../../data") / name,
        Path("../../../data") / name,
    ]:
        if p.exists():
            return str(p)
    return None


SSP_PATH = _find_ssp()

# Locate filter cache
_FILTER_DIR = next(
    (
        str(d)
        for d in [
            Path("data/filters"),
            Path("../data/filters"),
            Path("../../data/filters"),
            Path("../../../data/filters"),
        ]
        if d.exists()
    ),
    "data/filters",
)
if SSP_PATH is None:
    raise FileNotFoundError("SSP data not found — skipping example")

ssp = load_ssp_data(SSP_PATH)

# --- Define model ---
spec = Parameters(
    sfh_tsnorm_log_peak_sfr=Uniform(-1.0, 2.5),
    sfh_tsnorm_peak_lbt_gyr=Uniform(0.5, 12.0),
    sfh_tsnorm_width_gyr=Uniform(0.3, 5.0),
    sfh_tsnorm_skew=Uniform(-3.0, 3.0),
    sfh_tsnorm_trunc=Uniform(1.0, 10.0),
    met_logzsol=Uniform(-2.0, 0.2),
    dust_tau_diff=Uniform(0.0, 1.5),
    dust_slope=Fixed(-0.7),
    redshift=Fixed(0.05),
    mean_sfh_type="tsnorm",
)

bands = ["sdss_u", "sdss_g", "sdss_r", "sdss_i", "sdss_z"]
obs = Observation(photometry=Photometry.from_names(bands, cache_dir=_FILTER_DIR))
model = SEDModel(spec, ssp, observation=obs)

# --- Generate mock photometry (star-forming galaxy) ---
key = jax.random.PRNGKey(42)
true_params = spec.sample(key)
true_params["sfh_tsnorm_peak_lbt_gyr"] = 3.0
true_params["sfh_tsnorm_width_gyr"] = 2.0
true_params["sfh_tsnorm_log_peak_sfr"] = 1.0
true_params["sfh_tsnorm_skew"] = 0.3  # Positive skew = recent star formation
mock = model.mock(true_params, snr=20.0, key=key)

# --- Fit with MAP ---
fitter = Fitter(model, data=mock.flux_obs, noise=mock.noise)
posterior = fitter.run("map", optimizer="adam", n_steps=300, verbose=False)

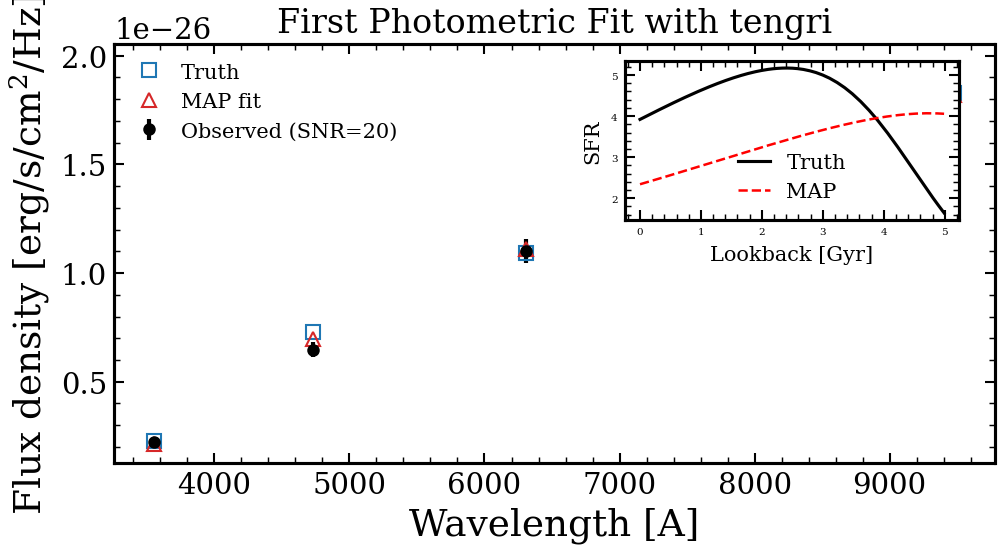

# --- Plot ---
fig, ax = plt.subplots(figsize=(7, 4))
filter_names = obs.photometry.names
wave_eff = np.array([float(jnp.mean(w)) for w in obs.photometry.filter_waves])

ax.errorbar(
    wave_eff,
    np.array(mock.flux_obs),
    yerr=np.array(mock.noise),
    fmt="o",
    color="k",
    ms=5,
    label="Observed (SNR=20)",
)
ax.plot(wave_eff, np.array(mock.flux_true), "s", color="C0", ms=7, mfc="none", label="Truth")
ax.plot(
    wave_eff,
    np.array(model.predict_photometry(posterior.params)),
    "^",
    color="C3",
    ms=7,
    mfc="none",
    label="MAP fit",
)

ax.set_xlabel("Wavelength [A]")
ax.set_ylabel("Flux density [erg/s/cm$^2$/Hz]")
ax.set_title("First Photometric Fit with tengri")
ax.legend(fontsize=10, frameon=False)

fig.tight_layout()
plt.savefig("plot_first_fit.png", dpi=150, bbox_inches="tight")
plt.show()
