Joint Photometry + Spectroscopy Fit

Demonstrates tengri’s Observation API for joint fitting. Creates a mock galaxy with both SDSS photometry and a low-resolution spectrum, fits with MAP, and shows the combined constraint power. Requires SSP data.

from pathlib import Path

import jax
import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

from tengri import (
    Fitter,
    Fixed,
    Observation,
    Parameters,
    Photometry,
    SEDModel,
    Spectroscopy,
    Uniform,
    load_ssp_data,
    setup_style,
)

setup_style()

Locate SSP data

def _find_ssp():
    """Locate SSP data from project root or docs/ (sphinx-gallery) cwd."""
    name = "ssp_prsc_miles_chabrier_wNE_logGasU-3.0_logGasZ0.0.h5"
    for p in [
        Path("data") / name,
        Path("../data") / name,
        Path("../../data") / name,
        Path("../../../data") / name,
    ]:
        if p.exists():
            return str(p)
    return None


SSP_PATH = _find_ssp()
if SSP_PATH is None:
    raise FileNotFoundError("SSP data not found — skipping example")

ssp = load_ssp_data(SSP_PATH)

Build Observation with joint photometry + spectroscopy

_FILTER_DIR = next(
    (
        str(d)
        for d in [
            Path("data/filters"),
            Path("../data/filters"),
            Path("../../data/filters"),
            Path("../../../data/filters"),
        ]
        if d.exists()
    ),
    "data/filters",
)

phot = Photometry.from_names(
    ["sdss_u", "sdss_g", "sdss_r", "sdss_i", "sdss_z"],
    cache_dir=_FILTER_DIR,
)
wave_rest = jnp.linspace(3800.0, 9200.0, 200)
z = 0.1
wave_obs = wave_rest * (1 + z)
spec_config = Spectroscopy(wave_obs=wave_obs)
obs = Observation(photometry=phot, spectroscopy=spec_config)

Create model and generate mock data

spec = Parameters(
    sfh_tsnorm_log_peak_sfr=Uniform(-1.0, 2.5),
    sfh_tsnorm_peak_lbt_gyr=Uniform(0.5, 12.0),
    sfh_tsnorm_width_gyr=Uniform(0.3, 5.0),
    sfh_tsnorm_skew=Fixed(0.3),
    sfh_tsnorm_trunc=Fixed(5.0),
    met_logzsol=Uniform(-2.0, 0.2),
    dust_tau_bc=Uniform(0.0, 2.0),
    dust_tau_diff=Uniform(0.0, 1.5),
    dust_slope=Fixed(-0.7),
    redshift=Fixed(0.1),
    mean_sfh_type="tsnorm",
)
model = SEDModel(spec, ssp, observation=obs)

true_params = {
    "sfh_tsnorm_log_peak_sfr": 1.2,
    "sfh_tsnorm_peak_lbt_gyr": 1.5,  # Recent peak = star-forming
    "sfh_tsnorm_width_gyr": 2.0,
    "sfh_tsnorm_skew": 0.3,  # Positive skew = recent star formation
    "sfh_tsnorm_trunc": 5.0,
    "met_logzsol": -0.3,
    "dust_tau_bc": 0.3,
    "dust_tau_diff": 0.4,
    "dust_slope": -0.7,
    "redshift": 0.1,
}

key = jax.random.PRNGKey(42)
# Generate photometry and spectroscopy separately, then concatenate
flux_phot_true = model.predict_photometry(true_params)
flux_spec_true = model.predict_spectrum(true_params, wave_obs)
flux_true = jnp.concatenate([flux_phot_true, flux_spec_true])
noise = flux_true / 20.0  # SNR = 20
flux_obs = flux_true + noise * jax.random.normal(key, shape=flux_true.shape)
mock = {
    "flux_true": flux_true,
    "flux_obs": flux_obs,
    "noise": noise,
}

Fit with MAP

fitter = Fitter(model, mock["flux_obs"], mock["noise"], data_type="joint")
posterior = fitter.run("map", optimizer="adam")

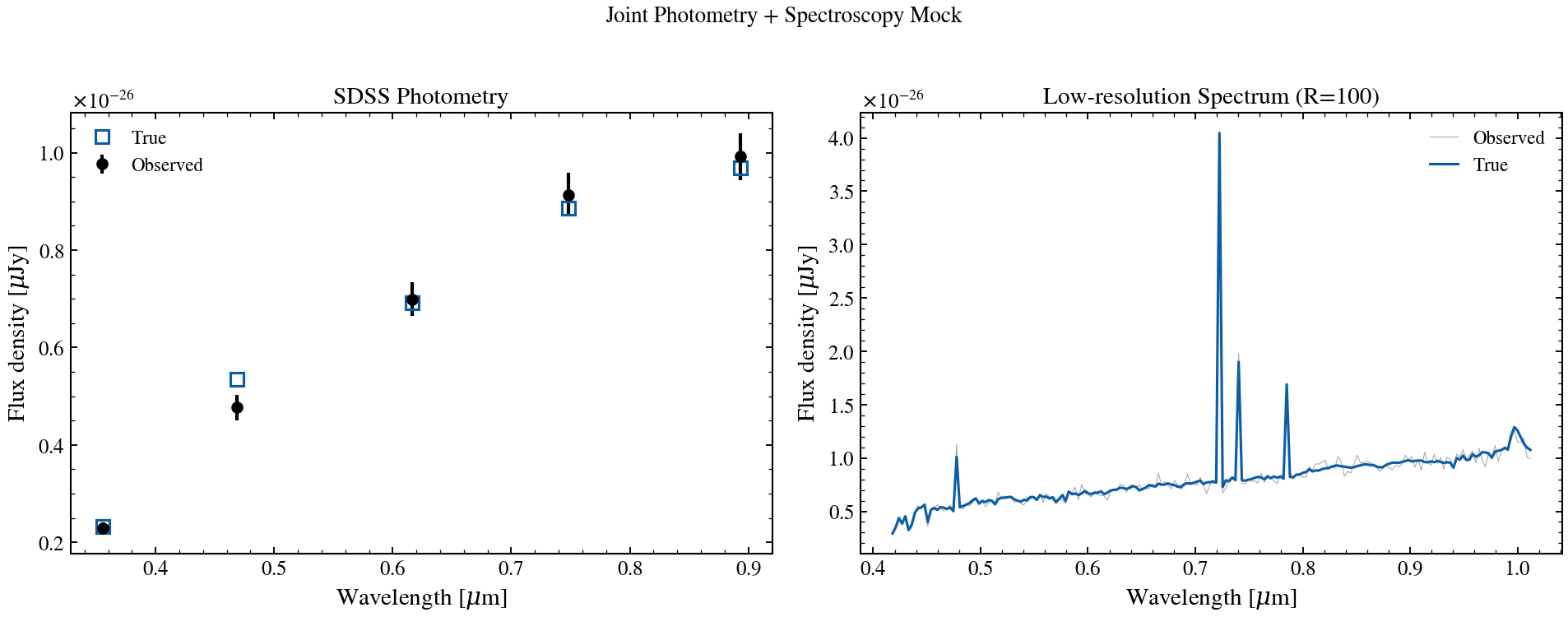

Plot: 2-panel figure (photometry + spectrum)

fig, axes = plt.subplots(1, 2, figsize=(13, 5))

# Left panel: photometry
ax = axes[0]
band_names = ["u", "g", "r", "i", "z"]
band_wave_um = np.array([3551, 4686, 6166, 7480, 8932]) / 1e4
phot_true = np.array(mock["flux_true"][:5])
phot_obs = np.array(mock["flux_obs"][:5])
phot_noise = np.array(mock["noise"][:5])

ax.errorbar(band_wave_um, phot_obs, yerr=phot_noise, fmt="o", color="k", ms=6, label="Observed")
ax.plot(band_wave_um, phot_true, "s", color="C0", ms=8, mfc="none", mew=1.5, label="True")
ax.set_xlabel(r"Wavelength [$\mu$m]")
ax.set_ylabel(r"Flux density [$\mu$Jy]")
ax.set_title("SDSS Photometry")
ax.legend(frameon=False)

# Right panel: spectrum
ax = axes[1]
wave_plot = np.array(wave_obs) / 1e4
n_phot = 5
if len(mock["flux_obs"]) > n_phot:
    spec_obs = np.array(mock["flux_obs"][n_phot:])
    spec_true = np.array(mock["flux_true"][n_phot:])
    ax.plot(wave_plot, spec_obs, color="grey", lw=0.5, alpha=0.7, label="Observed")
    ax.plot(wave_plot, spec_true, color="C0", lw=1.5, label="True")
ax.set_xlabel(r"Wavelength [$\mu$m]")
ax.set_ylabel(r"Flux density [$\mu$Jy]")
ax.set_title("Low-resolution Spectrum (R=100)")
ax.legend(frameon=False)

fig.suptitle("Joint Photometry + Spectroscopy Mock", fontsize=13, y=1.02)
fig.tight_layout()
plt.savefig("plot_joint_fit.png", dpi=150, bbox_inches="tight")
plt.show()
