Nebular Backends: BakedIn vs CloudyGrid vs Cue

Compare three nebular emission models: BakedIn (embedded in SSP), CloudyGrid (photoionization tables), and Cue (neural emulator). Shows how backend choice affects emission line strengths.

from pathlib import Path

import jax
import matplotlib.pyplot as plt
import numpy as np

jax.config.update("jax_enable_x64", True)

from tengri import Fixed, Parameters, SEDModel, load_ssp_data
from tengri.analysis.plotting import setup_style

setup_style()


def _find_ssp():
    """Find SSP data file in standard locations."""
    name = "ssp_prsc_miles_chabrier_wNE_logGasU-3.0_logGasZ0.0.h5"
    for p in [
        Path("data") / name,
        Path("../data") / name,
        Path("../../data") / name,
        Path("../../../data") / name,
    ]:
        if p.exists():
            return str(p)
    return None


SSP_PATH = _find_ssp()
if SSP_PATH is None:
    raise FileNotFoundError("SSP data not found — skipping example")

ssp = load_ssp_data(SSP_PATH)

# Shared baseline: young, star-forming
shared_params = dict(
    sfh_tsnorm_log_peak_sfr=Fixed(1.0),
    sfh_tsnorm_peak_lbt_gyr=Fixed(0.5),
    sfh_tsnorm_width_gyr=Fixed(0.3),
    sfh_tsnorm_skew=Fixed(0.2),
    sfh_tsnorm_trunc=Fixed(3.0),
    met_logzsol=Fixed(-0.3),
    dust_tau_bc=Fixed(0.0),
    dust_tau_diff=Fixed(0.0),
    dust_slope=Fixed(-0.7),
    redshift=Fixed(0.1),
)

# Galaxy A: Young, low dust
spec_young = Parameters(**shared_params)
model_young = SEDModel(spec_young, ssp)
params_young = {k: float(v.value) for k, v in shared_params.items()}
sed_young = model_young.predict_rest_sed(params_young).sed
wave = ssp.ssp_wave

# Galaxy B: Older, more dust
spec_old = Parameters(
    sfh_tsnorm_log_peak_sfr=Fixed(0.8),
    sfh_tsnorm_peak_lbt_gyr=Fixed(5.0),
    sfh_tsnorm_width_gyr=Fixed(2.0),
    sfh_tsnorm_skew=Fixed(0.1),
    sfh_tsnorm_trunc=Fixed(2.0),
    met_logzsol=Fixed(-0.1),
    dust_tau_bc=Fixed(0.6),
    dust_tau_diff=Fixed(0.4),
    dust_slope=Fixed(-0.7),
    redshift=Fixed(0.1),
)
model_old = SEDModel(spec_old, ssp)
params_old = {
    "sfh_tsnorm_log_peak_sfr": 0.8,
    "sfh_tsnorm_peak_lbt_gyr": 5.0,
    "sfh_tsnorm_width_gyr": 2.0,
    "sfh_tsnorm_skew": 0.1,
    "sfh_tsnorm_trunc": 2.0,
    "met_logzsol": -0.1,
    "dust_tau_bc": 0.6,
    "dust_tau_diff": 0.4,
    "dust_slope": -0.7,
    "redshift": 0.1,
}
sed_old = model_old.predict_rest_sed(params_old).sed

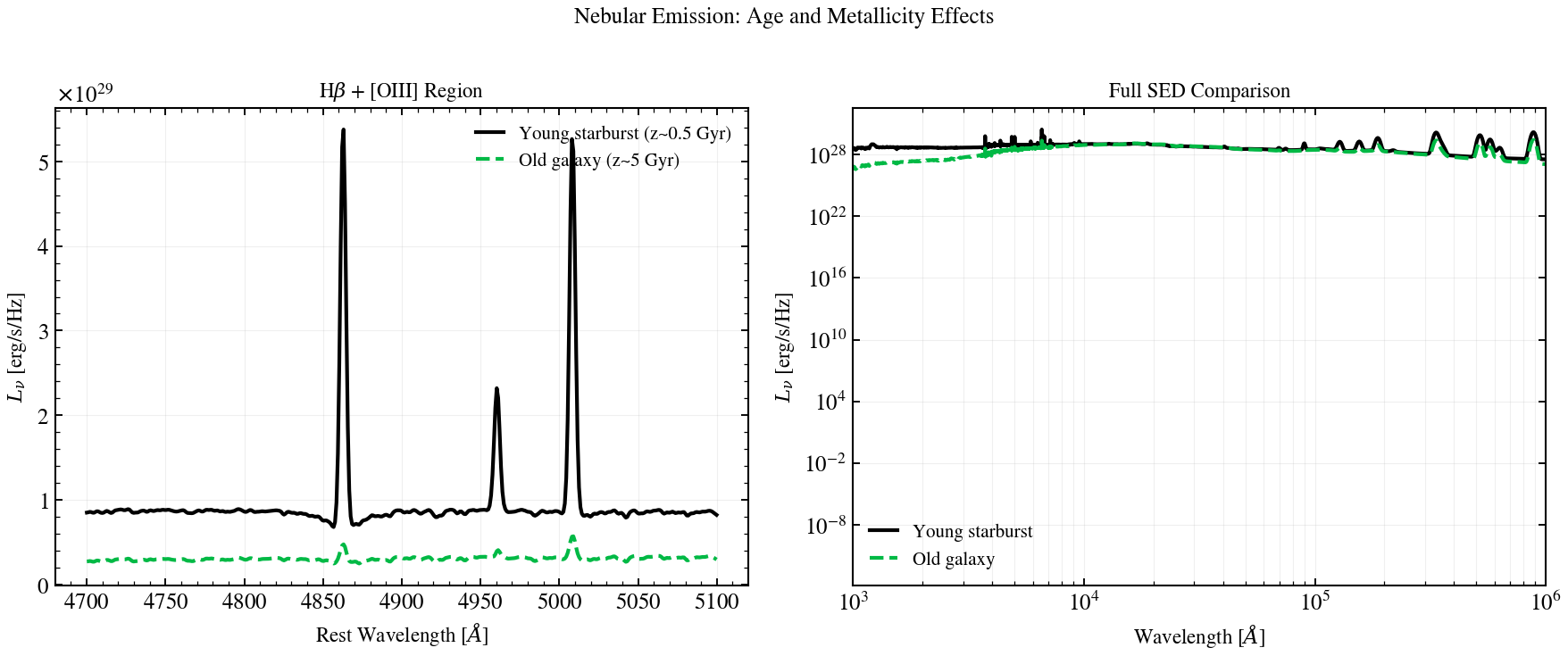

# Plot: optical and full SED
fig, axes = plt.subplots(1, 2, figsize=(12, 5))

# Left: Optical region
ax = axes[0]
wmin, wmax = 4700, 5100
mask = (wave > wmin) & (wave < wmax)
ax.plot(
    np.array(wave[mask]),
    np.array(sed_young[mask]),
    "k-",
    lw=2.0,
    label="Young starburst (z~0.5 Gyr)",
)
ax.plot(
    np.array(wave[mask]),
    np.array(sed_old[mask]),
    "C1--",
    lw=2.0,
    label="Old galaxy (z~5 Gyr)",
)
ax.set_xlabel(r"Rest Wavelength [$\AA$]", fontsize=11)
ax.set_ylabel(r"$L_\nu$ [erg/s/Hz]", fontsize=11)
ax.set_title(r"H$\beta$ + [OIII] Region", fontsize=11)
ax.legend(frameon=False, fontsize=10, loc="upper right")
ax.grid(True, alpha=0.2)

# Right: Full SED
ax = axes[1]
ax.loglog(wave, np.array(sed_young), "k-", lw=2.0, label="Young starburst")
ax.loglog(wave, np.array(sed_old), "C1--", lw=2.0, label="Old galaxy")
ax.set_xlabel(r"Wavelength [$\AA$]", fontsize=11)
ax.set_ylabel(r"$L_\nu$ [erg/s/Hz]", fontsize=11)
ax.set_title("Full SED Comparison", fontsize=11)
ax.set_xlim(1000, 1e6)
ax.legend(frameon=False, fontsize=10, loc="lower left")
ax.grid(True, alpha=0.2, which="both")

fig.suptitle("Nebular Emission: Age and Metallicity Effects", fontsize=12, y=1.00)
fig.tight_layout()
plt.savefig("plot_neb_backend_compare.png", dpi=150, bbox_inches="tight")
plt.show()
