SKIRTOR Torus: Optical Depth Sweep

Sweep agn_tau_skirtor from 3 to 11 at fixed inclination, opening angle, and radial power. The transition from optically thin to thick shifts the silicate feature from emission to absorption.

from pathlib import Path

import jax.numpy as jnp
import matplotlib.pyplot as plt
import numpy as np

# Locate SKIRTOR grid file
_grid_path = None
for p in [
    Path("data/skirtor_templates_v3.h5"),
    Path("../data/skirtor_templates_v3.h5"),
    Path("../../data/skirtor_templates_v3.h5"),
    Path("../../../data/skirtor_templates_v3.h5"),
    Path("data/skirtor_templates_v2.h5"),
    Path("../data/skirtor_templates_v2.h5"),
    Path("../../data/skirtor_templates_v2.h5"),
    Path("../../../data/skirtor_templates_v2.h5"),
]:
    if p.exists():
        _grid_path = str(p)
        break

if _grid_path is None:
    raise SystemExit(
        "Skipping: SKIRTOR grid not found. Run: python scripts/download_skirtor_templates.py"
    )

from tengri.analysis.plotting import setup_style
from tengri.components.agn import create_skirtor_from_grid

setup_style()

# Load the SKIRTOR interpolator
skirtor_fn = create_skirtor_from_grid(_grid_path)

# Wavelength grid: 0.5 - 500 micron (IR torus dominated)
wavelength = jnp.logspace(np.log10(5e3), np.log10(5e6), 512)
wave_um = np.array(wavelength) / 1e4

# Optical depth values to sweep
tau_values = [3, 5, 7, 9, 11]

# Create figure with single panel
fig, ax = plt.subplots(figsize=(8, 5))

# Generate colors from colormap
colors = plt.cm.viridis(np.linspace(0.0, 0.85, len(tau_values)))

# Fixed parameters: typical values
cos_inc = 0.5  # Edge-on orientation (60 degrees)
agn_log_lbol = 11.0
agn_p_skirtor = 1.0  # Radial power
agn_q_skirtor = 1.0
agn_oa_skirtor = 40.0

# Sweep optical depth
for tau, color in zip(tau_values, colors):
    try:
        sed = skirtor_fn(
            wavelength,
            agn_log_lbol=agn_log_lbol,
            agn_tau_skirtor=float(tau),
            agn_p_skirtor=agn_p_skirtor,
            agn_q_skirtor=agn_q_skirtor,
            agn_oa_skirtor=agn_oa_skirtor,
            agn_cos_inc=cos_inc,
        )
        ax.loglog(wave_um, np.array(sed), lw=2.0, color=color, label=rf"$\tau_{{9.7}} = {tau}$")
    except Exception:
        continue

ax.set_xlabel(r"Wavelength [$\mu$m]")
ax.set_ylabel(r"$L_\nu$ [erg s$^{-1}$ Hz$^{-1}$]")

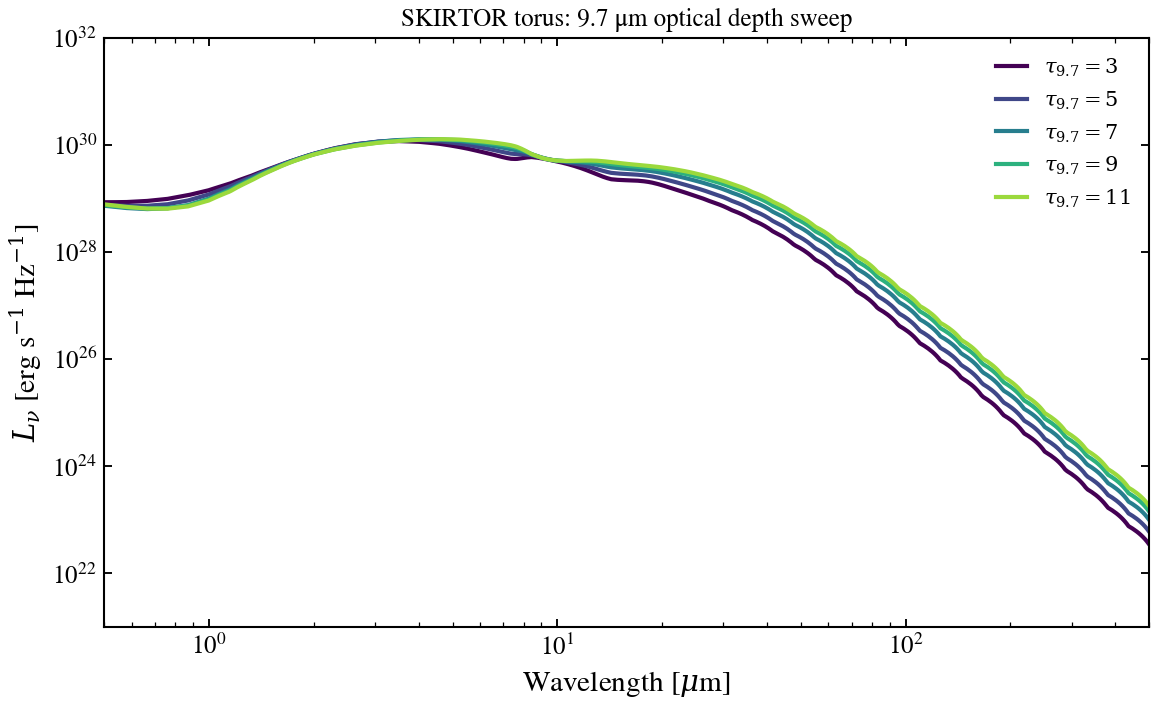

ax.set_title("SKIRTOR torus: 9.7 μm optical depth sweep", fontsize=12)
ax.legend(fontsize=10, frameon=False, loc="best")
ax.set_xlim(0.5, 500)
ax.set_ylim(1e21, 1e32)
ax.grid(False)

fig.tight_layout()
plt.savefig("plot_agn_tau_skirtor_sweep.png", dpi=150, bbox_inches="tight")
plt.show()
